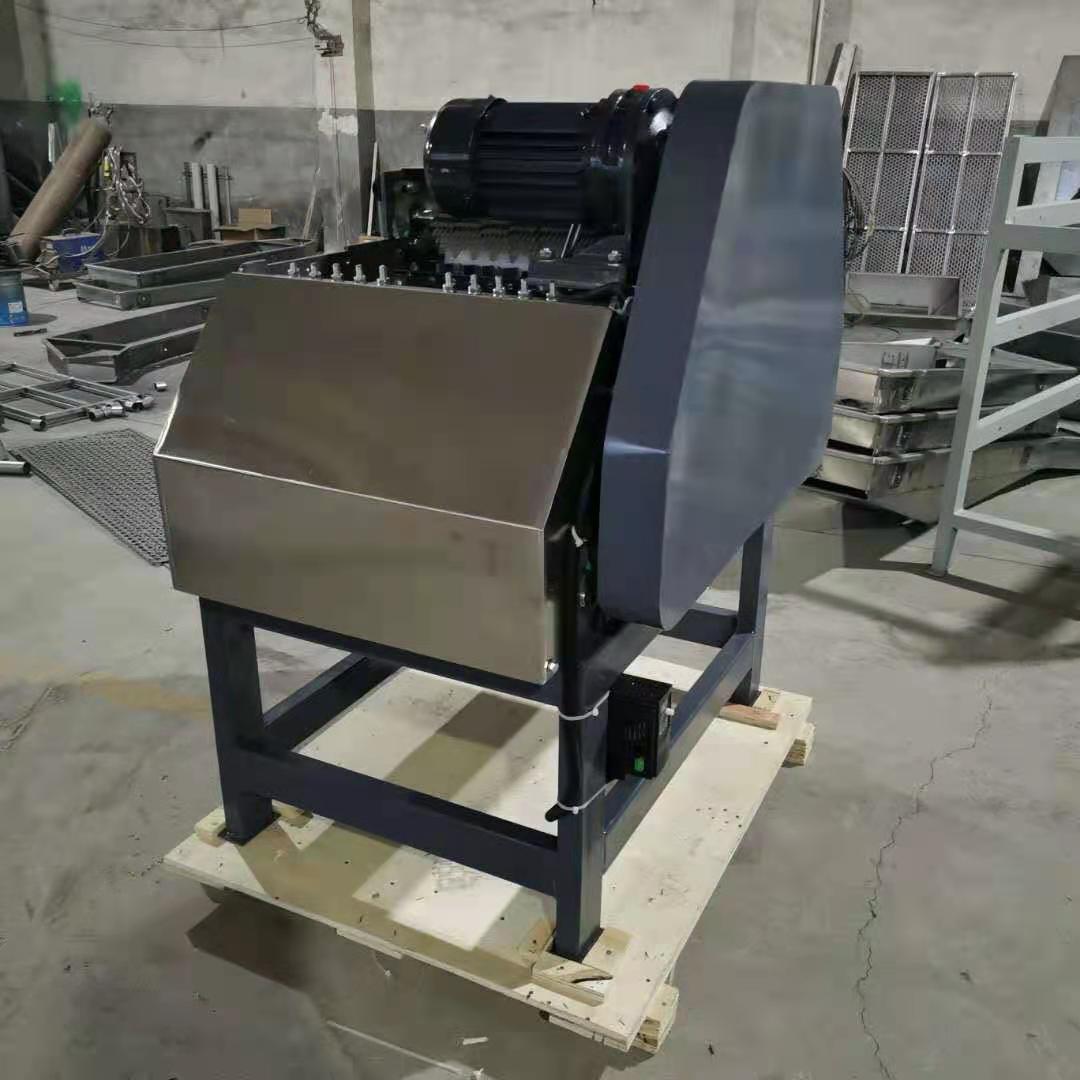

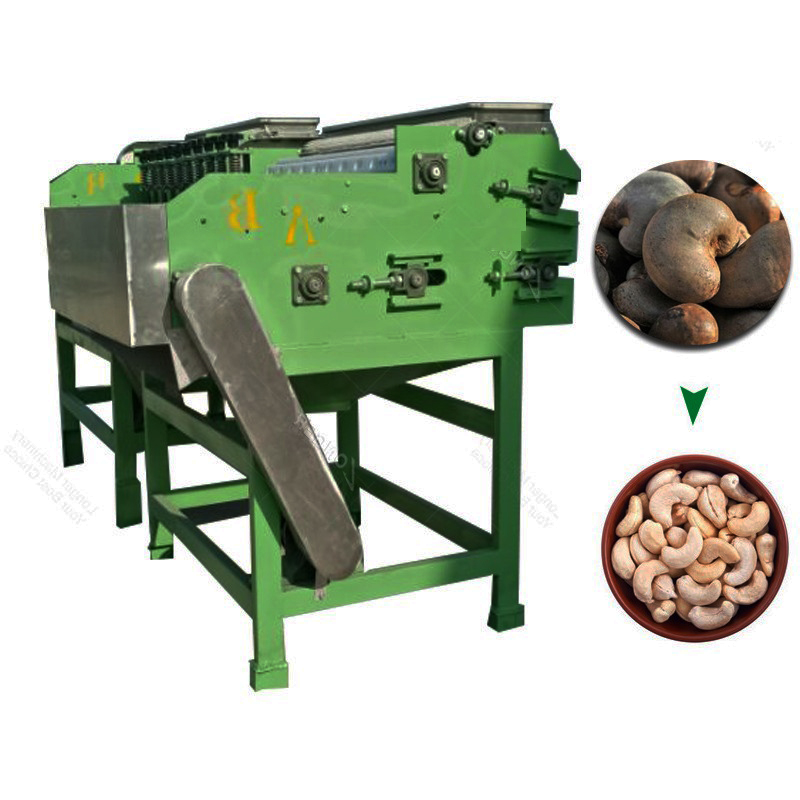

Automatic raw cashew sheller machine

Short Description:

Introduction:

1.This machine is mainly used to open the hard shell of cashew,walnut and so on;

2.This cashew nut shelling machine has large,medium and small model, and it adopts principle of shelling with screw pole and grid bar concave board.
3.It has features of compound double shelling,high shelling ratio,low cracking ratio and human resources saving.
4.Another is by adjusting the internal clearance. So as to achieve the best shelling effect the aircraft upper feed, shelling by mechanical internal material.



Product Detail

Product Tags

Specification:

ModelHCS-40HCS-80HCS-100HCS-150HCS-200HCS-500
Capacity(kg/h)4080100-150170-180200-230kg 500kg/h
Voltage220v/380v220v/380v220v/380v220v/380v220v/380v380V
Power0.75kw1.1kw1.1kw1.5kw1.5KW1.5KW
Dimension(mm)1.6*0.8*1.21.6*0.9*1.51.6*1.2*1.71.6*1.2*1.81.6*1.6*1.81.2*1.5*1.6
Blade pieces2 pieces4pieces6pieces8pieces10pieces 14 blades
Weight260kg320kg420kg560kg660kg480
