Puffed food packaging machine

Puffed food packaging machine

Short Description:

Introduction:

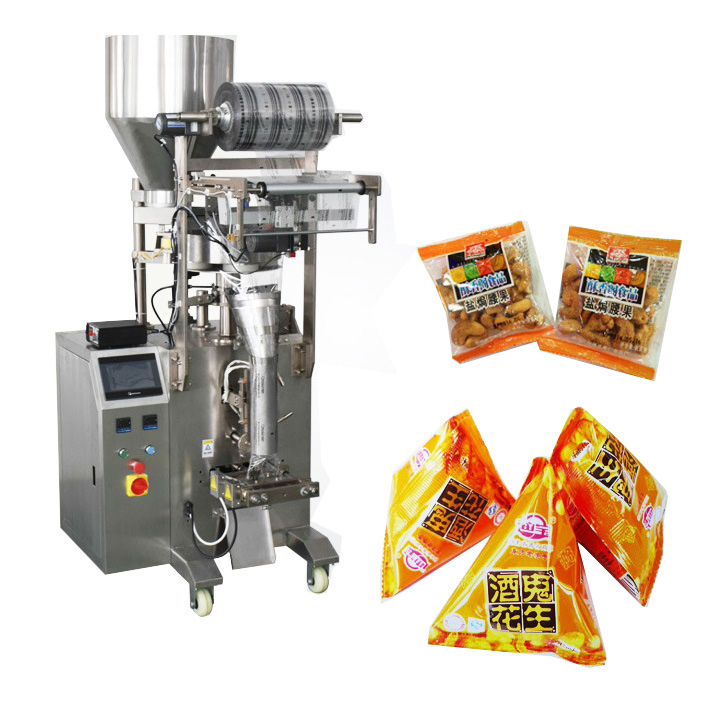

This granular nuts packaging machine is suitable for the packaging of regular and irregular materials in food, medicine, chemical, chemical, hardware and other industries: it is also suitable for the distribution of materials such as flakes, granules, blocks, strips, rounds and other shapes. Such as candy, biscuits, shrimp strips, potato chips, mushrooms, greens, peanuts, cashews, pistachios, kelp, jellyfish, Chinese herbal medicine, cooling oil, soap, fragrant tablets, screws, nuts, cutlery, small plastic, tweezers, magnetic Sheets, batteries and other materials.



Product Detail

Product Tags

Features:
1. PLC control system, bilingual display in Chinese and English. The packaging speed and the length of the bag can be adjusted steplessly within a certain range without replacing parts.
2, using stepper motor control, the system has high precision, good performance, low noise, and excellent stability.
3, the unique embedded design of the seal, with a good thermal balance, adapt to a variety of packaging materials, sealing lines clear, strong sealing.
4, the modular design, can be replaced by different metering devices to achieve the purpose of multi-purpose.
5. When packaging the color-coded packaging materials, a complete trademark pattern can be obtained.
6, automatically complete the measurement, bag making, filling, sealing, cutting, counting and other work.
7. Can be equipped with or optional code printer, inkjet printer (according to customer needs)

Specification:

Model

TCLB-160B

Packing material

OPP/CPP, /OPP/CE. PET/PE

Measuring range

Max500ml

Bag-making  Size

（L）30-200mmx（W）50-150mm

Packing Speed

30-80(bags)/(min)

Max Width Of film roll

320mm

 Power Supply

220v 50Hz 2kw

 Dimension(mm)

（L）1200x（W）700x（H）1600mm

 Weight

350kg
