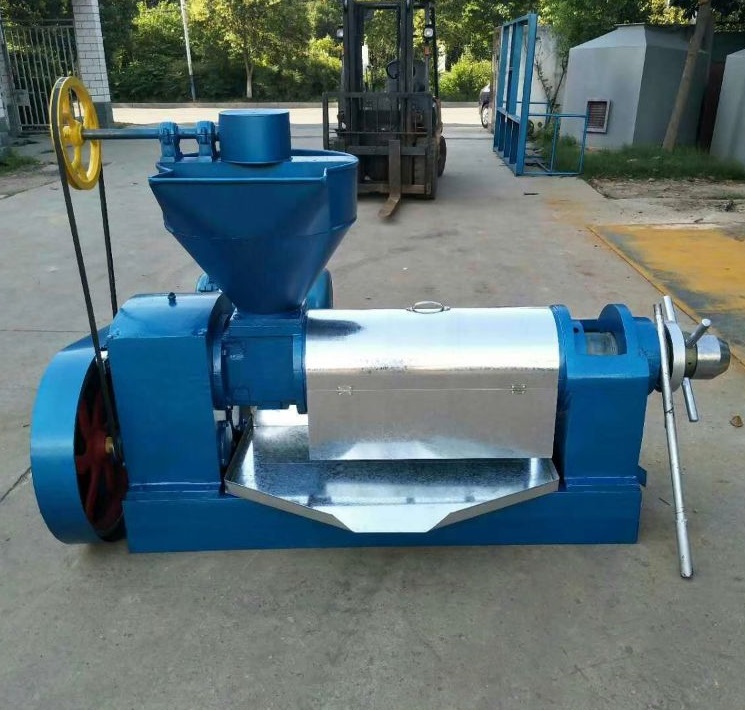

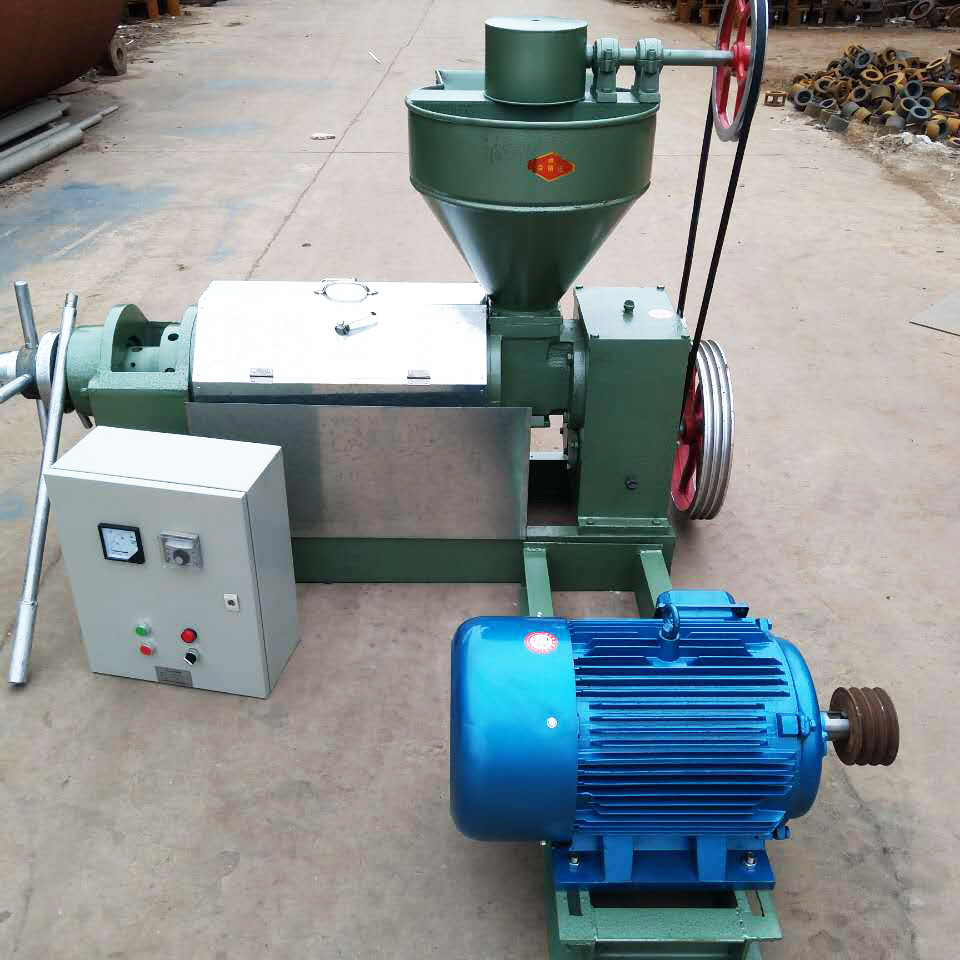

6Y peanut sesame screw oil press
Working principle:
This oil press is a screw type pressing machine that is capable of extracting oil within a caged barrel-like cavity. Usually, raw material enters it from the feeder. Then, the machine utilizes strong frication and continuous pressure to compress the raw material. After compression, the oil will come out from a small oil outlet. More importantly, the seed fiber solids and other larger impurities can’t pass through the small oil outlet. And, the extracted seeds will be pressed into hardened oil cake and discharged from your commercial tea seed oil press.
Specification:
Model | Capacity | Power | Machine size | Weight | |
6YL-68 | 40kg/h | 1T/24H | 5.5KW | 920x390x750 | 150 |
6YL-80 | 100-120kg/h | 3T/24H | 5.5KW | 1540x510x680 | 370 |
6YL-90 | 100-120kg/h | 3T/24H | 5.5KW | 1540x510x680 | 370 |
6YL-95 | 200kg/h | 5T/24H | 7.5KW | 1920x550x765 | 550 |
6YL-100 | 200kg/h | 5T/24H | 7.5KW | 1920x550x765 | 550 |
6YL-105 | 200-230kg/h | 5.5T/24H | 11KW | 2140x550x765 | 580 |
6YL-120 | 250kg/h | 6T/24H | 15KW | 2100x610x785 | 680 |
6YL-130-3 | 300-500kg/h | 8-12T/24H | 18.5KW | 2240x610x815 | 800 |
6YL-165 | 600-800kg/h | 15-20T/24H | 22-30KW | 2290x750x1020 880X750X760 | 1600 |
6YL-200 | 1000kg/h | 24T/24H | 37KW | 2600*1000*2450 | 2500 |
